QUALITY CONTROL & TESTING

At Wear Steels Pvt Ltd, we are committed to delivering high-quality steel products. Our rigorous quality control measures and advanced testing guarantee precision, reliability, and excellence in every product. Trust in our dedication to superior quality and consistent performance.

QUALITY CONTROL & TESTING - (CHEMICAL LAB)

Overview Highlights

Our chemical testing capabilities include advanced trace chemical analysis, diverse analytical capabilities and identification of chemicals composition, unknown materials and chemical contamination.

Among the all equipments spectrograph plays a vital role at our foundry.

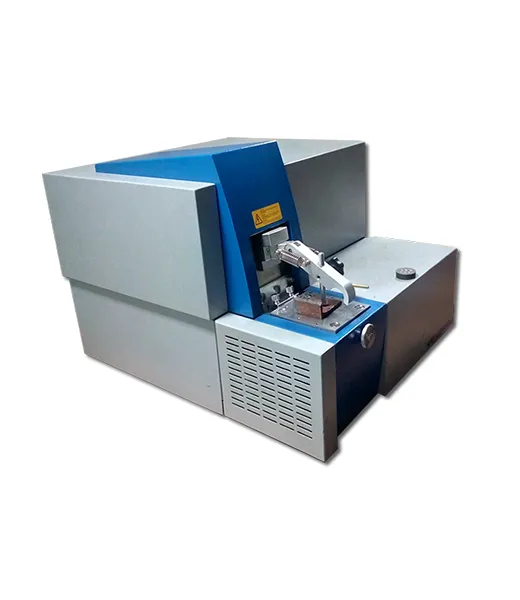

Spectrometer - Complete cutting, polishing and recording unit - Make Spectromaxx
Microprocessor based Carbon and Silicon analyser
Strohlem C&S Apparatus
Electronic balance weighing machines - Make ESSAE
Fully fledged chemical laboratory and sand testing equipments

Among the all equipments spectrometer plays a vital role at our foundry. Spectrometer analyses the composition of a sample as to the percentage of various metals and gives out the results in a printed format from the attached computer.

QUALITY CONTROL & TESTING - (PHYSICAL TESTING LAB)

Overview Highlights

Physical properties testing expertise includes key physical property characteristics for a wide range of materials.

At our foundry physical properties analysis and testing is conducted by well and experienced engineers.

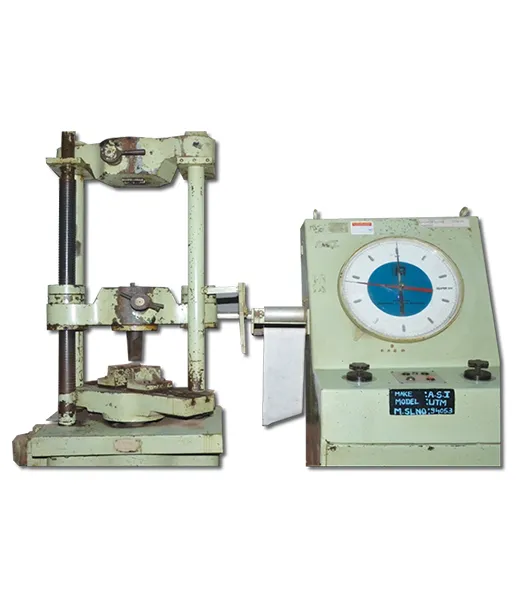

Universal Testing Machine - 40T - Make ASI
Metallurgical Microscope with camera
Poldi Hardness Tester
M.P.I Magnaflex - M530 Prode Type
Digital Hardness Testing Machine - make DIETMER Systems, Model D-2
Ultrasonic Testing Equipment - EES make, Model EIGI Scan Ds322. Range 1mm - 5mtr
Impact Testing Machine - make Fuel Instruments Model IT-30
Specimen Preparation Machine, D/ Disk
Surface Plate and Marking Table - 2500 x 3000 mm

QUALITY CONTROL & TESTING - (FETTLING)

Overview Highlights

The removal of feeders and excess material from a casting is taken as the first stage of finishing a casting.

The metal removal is often achieved using manual cutting or grinding. However, more emphasis is being placed on automatic fettling, whereby the casting is placed in a machine programmed to remove materials from specific areas. The method of fettling must be taken into account at the initial casting design stage, so that the process is fast and efficient..

We are having the full-fledged fettling shop to meet out customer specifications with many automated facilities.

Straight Grinder - 7 Nos.
Chippers - 12 Nos.
Die Grinder - 2 Nos.
Ag7 Grinder - 7 Nos.
Swing Frame Grinder - 6 No.s, Size 400x53x152.4 mm
Double Ended Post Grinder - 5 Nos.
Flexible Shaft Grinder - 1 No, 9” Dia.
Rectifier - 1200A 1 No. & 600A 2 Nos.
Welding machines - 4 Nos (400A 2 Nos & 200A 2 Nos).

QUALITY CONTROL & TESTING - (HEAT TREATMENT)

Overview Highlights

The application of heat to a casting to alter the material properties making them suitable for the finished product or for subsequent processing.

We are having inhouse facility of heat treatment for various cycles like normalising, water quenching, annealing, tempering, acid pickling and pasivation etc..,.

Heat treatment furnace - 25 MT - Bogie hearth type furnace with six point chart recorder.
Heat treatment furnace (Oil fired) - 8 MT and 20MT - 1 No. with quenching facility. (Alloy and manganese castings, with Electronic Temperature indicator)

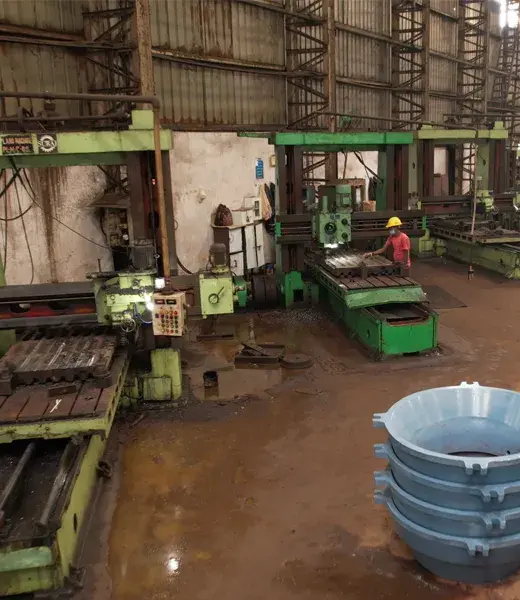

QUALITY CONTROL & TESTING - (MACHINE SHOP)

Overview Highlights

We are fully equipped with best automated machines in our foundry which are made in use after the casting design stage.

Plano Milling Machine -
1. Bed Size 3MTS x 1.3 MTS - 3 Nos.
Vertical Turning Lathe -
1. Dia 1500 Table - 4 Nos.
2. Dia. 2000 Table - 2 Nos.

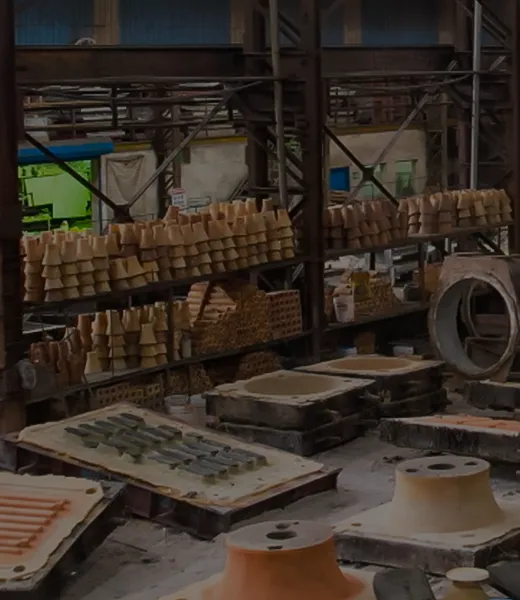

QUALITY CONTROL & TESTING - (PATTERN SHOP)

Overview

Our foundry has inhouse pattern shop facility to manufacture of patterns, methoding, mounting, reconditioning and rework of patterns with qualified pattern makers.

We are having sufficient storage place for customer patterns to traceable with pattern code also In-house pattern making facility for wood, metal and thermocol patterns.
